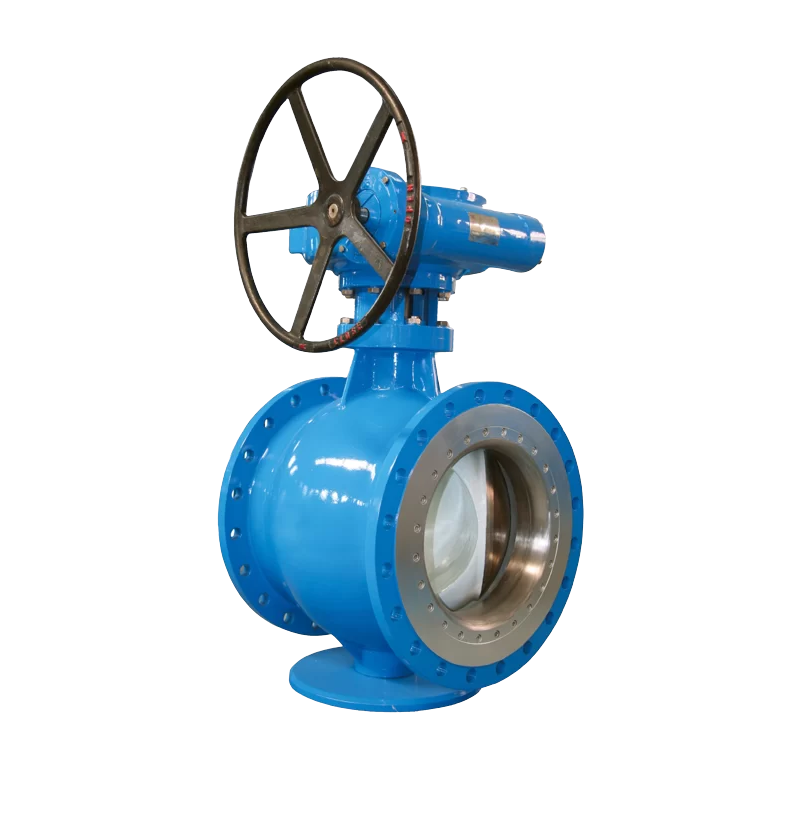

Eccentric Plug Valves

Spec Sheet: Alpine ZD Eccentric Plug Valve PN10-16-25-40-65

The eccentric plug valve which is designed by metal to metal hard seated and double flanged type. It is applied in the sewage and wastewater industry, municipal engineering, drinking water engineering, etc.

Flange dimension and drilling: EN1092/ISO5752(DIN2501), or other as requested

Face-to-face length: EN558-1/ISO5752 series 3(DN300 and bigger size, enterprise standard)

Pressure rating: PN 10/16/25/40/64

Sizes: DN 100 – DN 2000;4″-80″

Applications: water, wastewater, oil, grain, slurry, etc.



Category: Tag:

Description

Eccentric Plug Valves

Eccentric Plug Valves cut out

Overview:
►1.Body
Straight through flow port with low-pressure loss and energy-efficient

►2. Shaft Sealing System
Shaft sealing by means of O ring or graphite packing ensures reliable sealing performance.

►3. Flange
Flange and drilling with EN1092-2

►4. Ball sealing ring
Welded hard alloy ball sealing ring provides long and durable service life.

►5. Body Seat Ring
Welded hard alloy body seat ring provides long and durable service life.

►6 Packing
Easily adjusted packing design ensures the reliable sealing performance

►7. Top flange
ISO 5211 top flange connects with gearbox

►8. Gearbox
The gearbox is equipped with ISO 5210 flange connection with an actuator, and F10 is standard specified.
