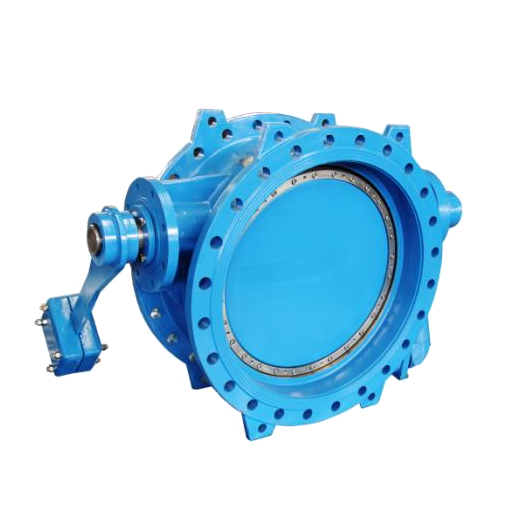

Tilting Disc Check Valve

Spec Sheet: Alpine ZD Tilting Disc Check Valve PN10-16-25-40

Tilting disc check valve, with counterweight and hydraulic damper in option, is designed as double eccentric double flange and is applied in the water industry, irrigation, municipal engineering, water conservancy project, drinking water engineering, etc.

Design standard: BS EN12334

Face-to-face length: EN558-1/ISO5752 series 14 (DIN3202 F4)

Flange dimension and drilling: EN1092/ISO5752(DIN2501), or other as requested

Size: DN100 – DN4000

Pressure rating:PN6- PN10-PN16-PN25-PN40

Description

Tilting Disc Check Valve

Overview:
►1. Body
A large eccentric design disc provides a large opening degree.

►2. Bearing system
Stainless Steel base with PTFE bearing helps the free operation without stuck.

►3. Disc
A streamlined low profile disc ensures the lower flow resistance

►4. Body sealing
Stainless steel welded and finished body seat ensures Reliable and durable performance.

►5 Flange
Flange and drilling to EN1092-2, face to face as per ISO5752 series 14

►6. Shaft Bearing
Multiple shaft O rings provide long life and reliable sealing performance, which is easy to be adjusted or replaced

►7. Disc Seal Ring
T profiled disc seal ring fixed by retainer ensures the reliable sealing performance in both directions, which is also easy to be adjusted or replaced without any special tools.
